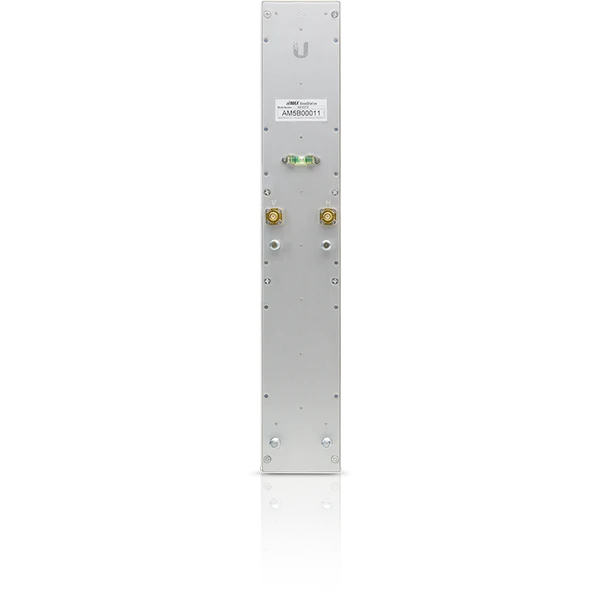

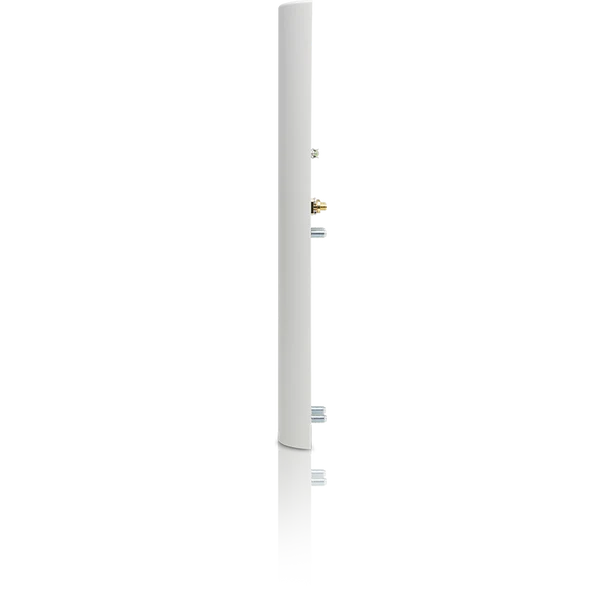

| AM-5G16-120 | |
|---|---|
| Dimensions (mm) | 367 x 63 x 41 |
| Weight | 1.1 kg |
| Frequency Range | 5.10 – 5.85 GHz |
| Gain | 15.0 – 16.0 dBi |
| HPOL Beamwidth | 137° (6 dB) |
| VPOL Beamwidth | 118° (6 dB) |
| Electrical Beamwidth | 8° |
| Electrical Downtilt | 4° |
| Max. VSWR | 1.5:1 |
| Wind Survivability | 125 mph |
| Wind Loading | 6 lbf @100 mph |
| Polarization | Dual-Linear |
| Cross-pol Isolation | 22 dB Min. |
| ETSI Specification | EN 302 326 DN2 |
| Mounting | Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included |
