Description

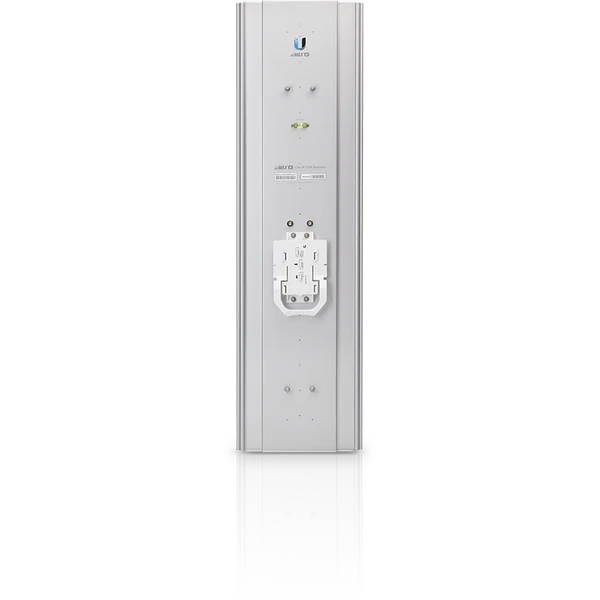

| AM-5AC22-45 | |
|---|---|
| Dimensions (mm) | 750 x 215 x 94 mm |
| Weight | 6 kg |
| Frequency Range | 5.10 – 5.85 GHz |
| Gain | 22 dBi |
| HPOL Beamwidth | 45° (6 dBi) |
| VPOL Beamwidth | 45° (6 dBi) |
| Electrical Beamwidth | 4° |
| Electrical Downtilt | 2° |
| Max. VSWR | 1.5:1 |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 347 N @ 200 km/h (78 lbf @ 125 mph) |
| Polarization | Dual-Linear |
| Cross-pol Isolation | 30 dB Min. |
| ETSI Specification | EN 302 326 DN2 |
| Mounting | Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included |
